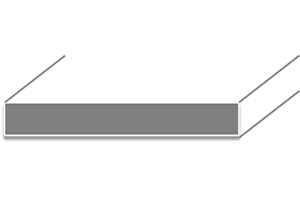

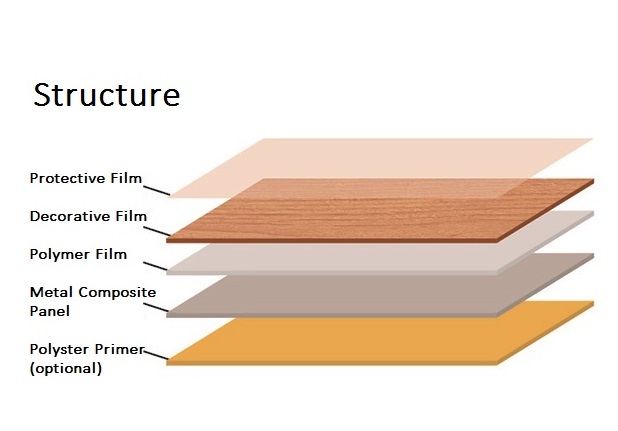

Optional Core of the metal composite panel:
1. LDPE
2. Flame Retardant :
Class B-s1,d0 as per EN13501-1.
3. Non combustible:
Class A2-s1,d0 as per EN13501-1.
Standard specification
Panel Thickness: 3 mm, 4 mm
Aluminium Thickness: 0.20 to 0.50 mm
Standard Width: 1220 mm
Standard Length: 2440 mm or upon the customer, not over 6000 mm.
For other specifications that are not mentioned here, please contact our sales representative to confirm.
Product Features
• Easy processing and installation
It can be easily processed by wood or metal tooling as the traditional aluminium composite panel.
Bending, slotting, grooving and other processing into complex shapes and sizes can be done effortlessly.
• Rich in colours and patterns
More than 140 kinds of conventional colors, a total of more than 600 colors, including wood, stone, leather, solid and so on. The customized pattern is available.
• Fire resistance
The fire-resistant performance can reach to Class B or Class A2 by the optional fire-resistant core.
• Moisture resistance
The product has strong moisture resistance, acid and alkali resistance, no colour fading for 15 years of interior use.
• Scratch resistance
The special composition is added during the production thus the surface can be prevented from scratching.
• Friendly to environment
No glue is needed during the installation process, and it is green and environmentally friendly.
Technical Data
|
Property |
Test Method |
Unit |
Value |
|
Tensile strength |
ISO 527-3/5/50 |
Mpa |
|
|
Along |
|
|
26 |
|
Across |
|
|
22 |
|
Elongation |
ISO 527-3/5/50 |
% |
|
|
Along |
|
|
170 |
|
Across |
|
|
140 |
|
Hardness |
ISO 868 |
Shore °D |
64 ± 3 |
|
Light resistance |
ISO 4892-2 |
Class |
≥6 |
|
Thermo-stability |
120℃/5 min. |
Visual |
No change |
|
Max operating temperature |
- |
℃ |
60 |
Colour Series

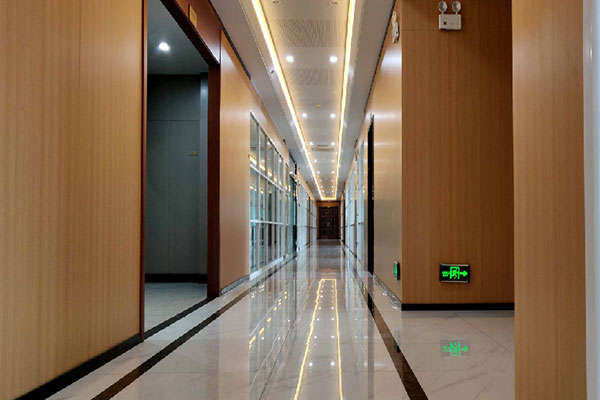

Aesthetic Wood
The Aesthetic Wood is about the combination of classic elegance and casual sense originated from natural elements. The textured surface and various colour tones deliver a unique and delicate glamour for modern interiors.

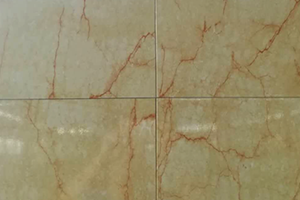

Elegant Mable
There is no other material that exudes elegance than the Elegant Mable. Whether you are looking to enhance your commercial project or adding a touch of refinement to your residential project. The Elegant Mable is the perfect solution.
Modern Metallic
If you’re tired of those dull designs, take a look at the Modern Metallic. The strong metallic feeling is absolute eye-catching that perfectly integrates with a sense of technology and modern design style. The stunning collection looks spiritual and magical.

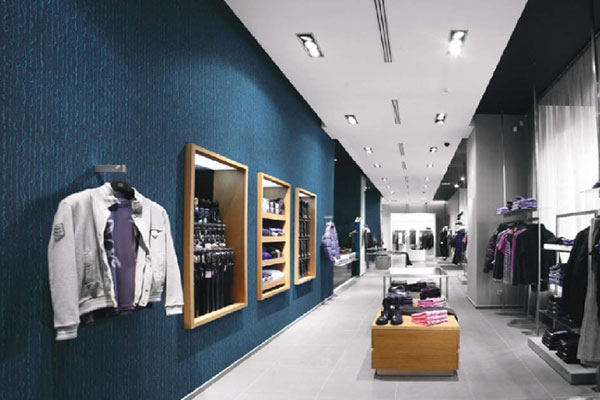

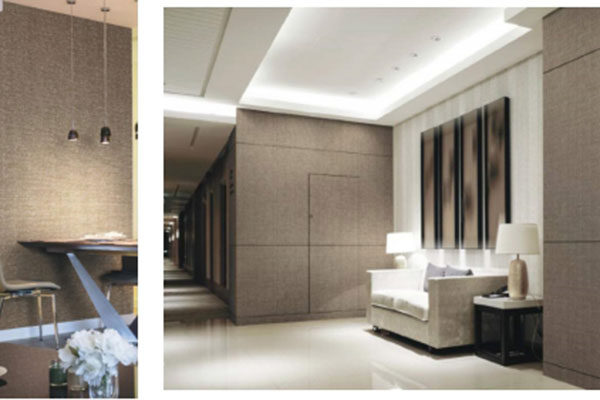

Textured Fabric
Get the look of Textured Fabric with this chic style. Its tightly woven design and raised inks lend to its realistic style. The collection creates a tactile and visually appealing structure with fine stripes.

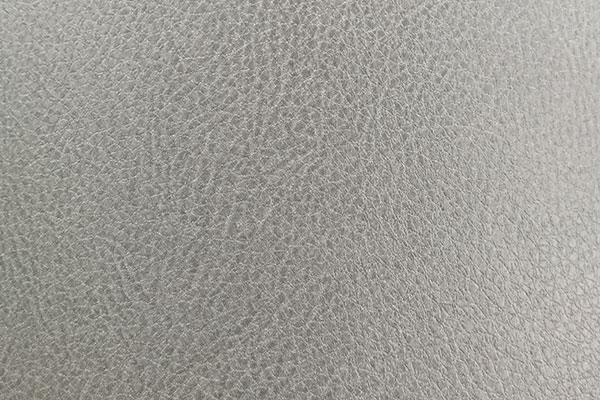

Luxury Leather
The Luxury Leather kindly creates a sophisticated allure and looks remarkably realistic. It represents leather in its most beautiful facets.
Integrated Panel System
| System name | Panel Length(Customizable) | Panel Width | Panel Thickness | Keel/Combination Profile |
| Seamless Fixing System | Standard:2440mm | Standard:1220mm | Standard:4mm(6mm) | 6meters/pc, can be cut according to requirements |
| Open-joint Fixing System | Standard:2440mm | Standard:1220mm | Standard:4mm(6mm) | 6meters/pc, can be cut according to requirements |
| Open-frame Fixing System | Standard:2440mm | Standard:1220mm | Standard:3mm, 4mm | 6meters/pc, can be cut according to requirements |
| Sticking | Standard:2440mm | Standard:1220mm | Standard:2mm, 3mm, 4mm | / |

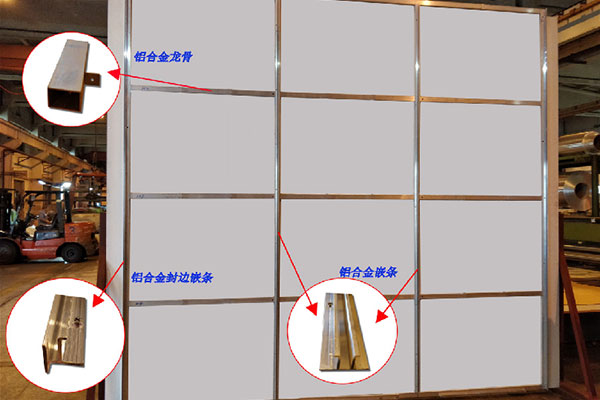

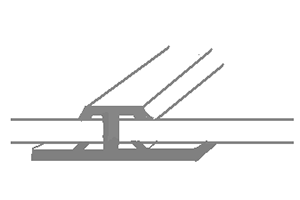

Alucobest® offers special easy fixing and quick installation system, which uses special aluminum profile components to assemble pre-finished metal composite panels.
Proprietary Fixing system as below:

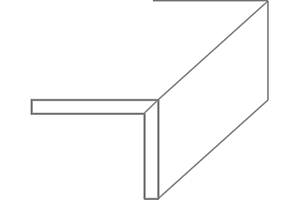

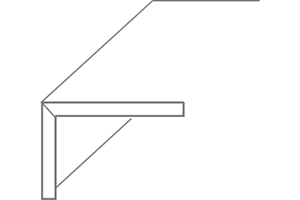

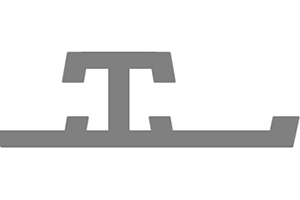

Seamless Fixing System

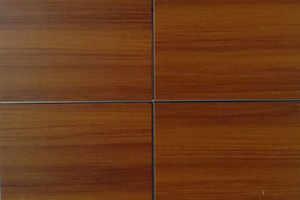

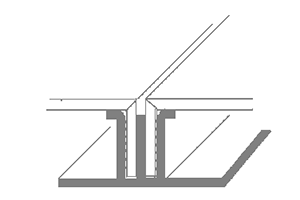

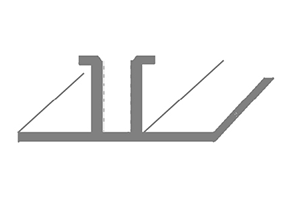

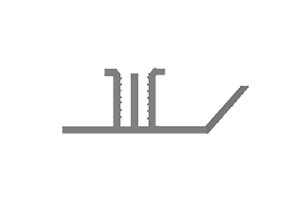

Open-joint Fixing System

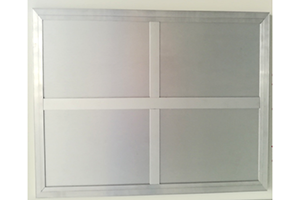

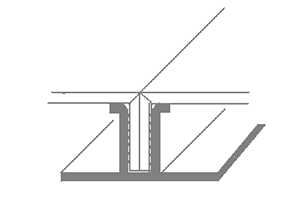

Open-frame Fixing System
Total Quality Management
Raw Material Test
IPQC,In Process Quality Control
Pre-Shipment Inspection(PSI)
Raw Material Test
IPQC,In Process Quality Control
Pre-Shipment Inspection(PSI)
